• Procesador
1. AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors

(Please refer "CPU Support List" for more information.)

• Chipset
1. AMD B650
• Memoria
1. Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules
2. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
5. Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

• Gráficos Integrados

Integrated Graphics Processor with AMD Radeon™ Graphics support:

1. 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
   * Support for DisplayPort 1.4 version.
2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
   * Support for HDMI 2.1 version and HDCP 2.3.
   ** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

Support for up to 3 displays at the same time

• Audio
1. Realtek^® Audio CODEC
2. High Definition Audio
3. 2/4/5.1/7.1-channel
   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• LAN
1. Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
• Puertos de Expansión

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

1. AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
   * The PCIEX16 slot can only support a graphics card or an NVMe SSD.

Chipset:

4. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
• Interfaz de Almacenamiento

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 5110/22110/2580/2280 SSDs:

1. AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

4. AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
5. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
6. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices

• USB

CPU:

1. 1 x USB Type-C^® port on the back panel, with USB 3.2 Gen 2 support
2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

CPU + USB 2.0 Hub:

3. 4 x USB 2.0/1.1 ports on the back panel

Chipset:

4. 1 x USB Type-C^® port with USB 3.2 Gen 2 support, available through the internal USB header
5. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6. 4 x USB 2.0/1.1 ports available through the internal USB headers
• Conectores Internos de E/S
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x CPU fan header
4. 3 x system fan headers
5. 1 x addressable LED strip header (D_LED1)
6. 1 x addressable LED strip header (D_LED2)
7. 1 x RGB LED strip header
8. 2 x M.2 Socket 3 connectors
9. 4 x SATA 6Gb/s connectors
10. 1 x front panel header
11. 1 x front panel audio header
12. 1 x USB Type-C^® header, with USB 3.2 Gen 2 support
13. 1 x USB 3.2 Gen 1 header
14. 2 x USB 2.0/1.1 headers
15. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
16. 1 x serial port header
17. 1 x reset button
18. 1 x reset jumper
19. 1 x Clear CMOS jumper

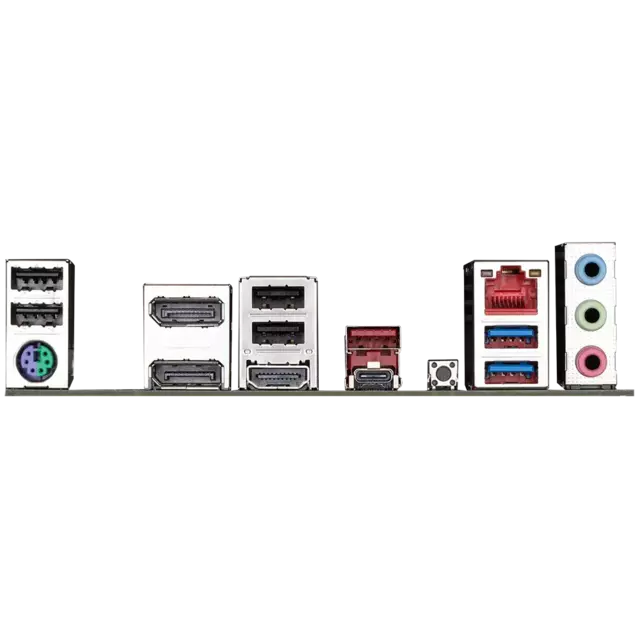

• Conectores del Panel Trasero
1. 4 x USB 2.0/1.1 ports
2. 1 x PS/2 keyboard/mouse port
3. 2 x DisplayPorts
4. 1 x HDMI port
5. 1 x USB 3.2 Gen 2 Type-A port (red)
6. 1 x USB Type-C^® port, with USB 3.2 Gen 2 support
7. 1 x Q-Flash Plus button
8. 1 x RJ-45 port
9. 2 x USB 3.2 Gen 1 ports
10. 3 x audio jacks
• Controlador de E/S
1. iTE^® I/O Controller Chip
• Monitorización H/W
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Fan fail warning
5. Fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Características Únicas
1. Support for GIGABYTE Control Center (GCC)
   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
2. Support for Q-Flash
3. Support for Q-Flash Plus
• Software Incluido
1. Norton^® Internet Security (OEM version)
2. LAN bandwidth management software
• Sistema Operativo
1. Support for Windows 11 64-bit
2. Support for Windows 10 64-bit
• Diseño
1. Micro ATX Form Factor; 24.4cm x 24.4cm

GARANTIA: 12 MESES - SKU:B650M DS3H-AI2
