SPECIFICATIONS:
HX436C17PB4A/8
8GB 1G x 64-Bit
DDR4-3600 CL17 288-Pin DIMM
CL (IDD): 17 CYCLES
ROW CYCLE TIME (TRCMIN): 45.75ns (min.)
REFRESH TO ACTIVE/REFRESH: 350ns (min.)
COMMAND TIME (TRFCMIN)
ROW ACTIVE TIME (TRASMIN): 32ns (min.)
UL RATING: 94 V - 0
OPERATING TEMPERATURE: 0o C to +70o C
STORAGE TEMPERATURE: -40o C to +85o C
FEATURES:
• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.4V to 3.3V
• On-Die termination (ODT)
• 16 internal banks; 4 groups of 4 banks each
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
• HyperX Infrared Sync working distance 18mm
• Factory preset RGB wave lighting effect
• Height 1.661” (42.20mm)

XMP TIMING PARAMETERS:
JEDEC: DDR4-2400 CL17-17-17 @1.2V
•XMP Profile #1: DDR4-3600 CL17-19-19 @1.35V
•XMP Profile #2: DDR4-3000 CL15-17-17 @1.35V

DESCRIPTION:

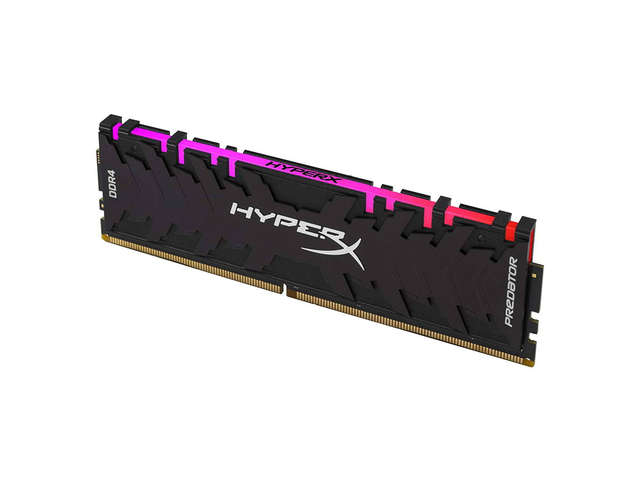

HyperX HX436C17PB4A/8 is a 1G x 64-bit (8GB) DDR4-3600
CL17 SDRAM (Synchronous DRAM) 1Rx8, memory module,
based on eight 1G x 8-bit FBGA components per module. Each
Module kit supports Intel® Extreme Memory Profiles
(Intel® XMP) 2.0. Each module has been tested to run at
DDR4-3600 at a low latency timing of 17-19-19 at 1.35V. The
SPDs are programmed to JEDEC standard latency
DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin
DIMM uses gold contact fingers. The JEDEC standard
electrical and mechanical specifications are as follows: - Garantía por escrito de 12 meses - (14971)0(IN) - HX436C17PB4A/8-IN
